DIVERTER DAMPER
High-Temperature 3-Way & Bypass Gas Diverting System
The Diverter Damper is an engineered heavy-duty gas diversion system designed with one inlet and two outlets using a single pivot blade mechanism for rapid modulation (under 30 seconds) between the main stack and HRSG bypass. Built with up to 99.9% sealing efficiency (using Seal Air systems) and capable of continuous operation up to 1000°C.
Real Fabrication & Field Units
By-Pass Damper 3D Cutout Render

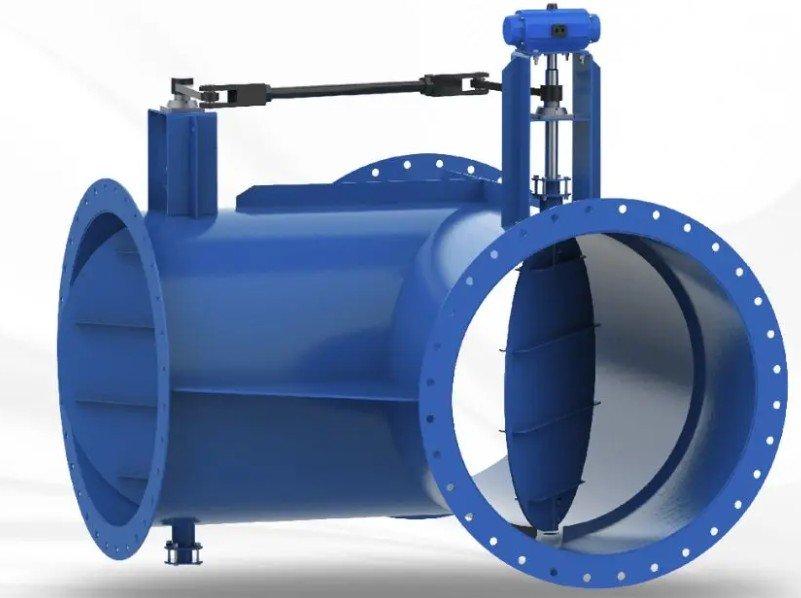

3-Way Diverter Damper Installation

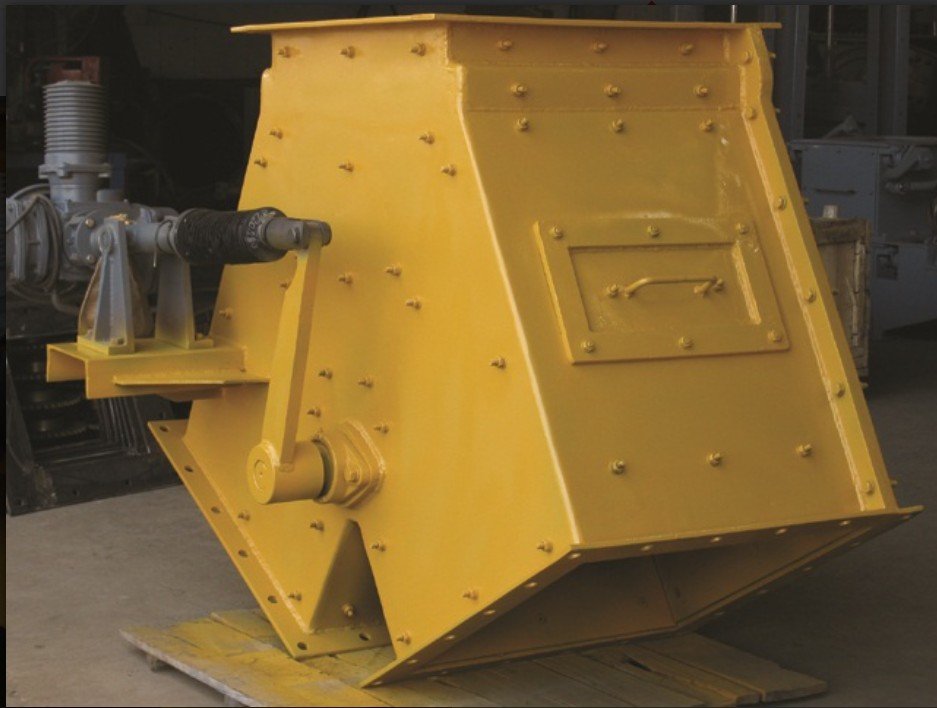

Gas Turbine Flap Diverter

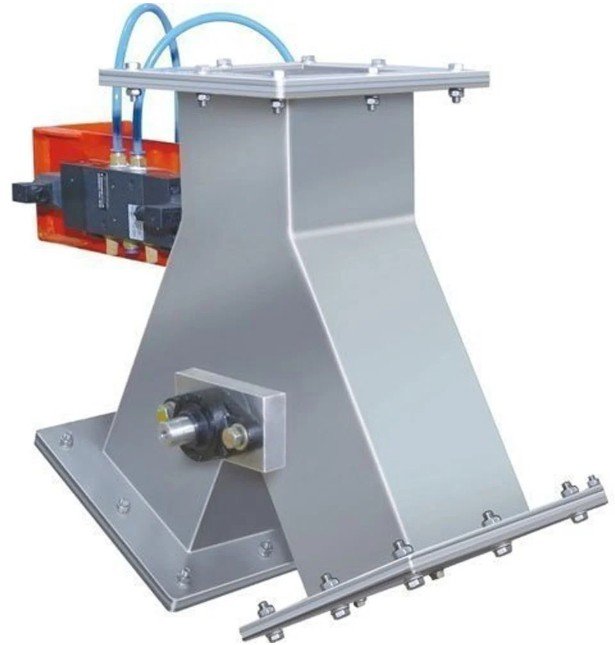

Y-Type Diverter Damper Unit
Key Engineering Advantages
Single Pivot Rapid Modulation
Rapid switching between main turbine stack and HRSG bypass under 30 seconds to prevent turbine downtime.
99.9% Seal Air Efficiency
Engineered with pressurized Seal Air systems to achieve 100% zero leakage for human personnel safety during HRSG maintenance.
1000°C Thermal Endurance
Fabricated from IS2062, SS304, SS316, and Inconel superalloys to withstand severe turbine exhaust temperatures.
Multi-Actuation Control
Available with synchronized dual linkages, heavy-duty gearboxes, pneumatic cylinders, and smart electrical actuators.
Technical Specifications
| Engineering Parameter | Design Specification |
|---|---|
| MOC | IS2062 Carbon Steel, SS304, SS316, Inconel (Higher grades on request) |
| Type | Y-Type Single Flap, T-Type Double Flap, Box Type |
| Size Range (Dia.) | 100 mm to 6000 mm (Custom engineered) |
| Sealing Efficiency | Up to 99.5% (99.9% with Seal Air system for zero leakage) |
| Design Temperature | Up to 1000°C continuous |
| Operating Air Pressure | Up to 1200 mmWC / As per project requirement |
| Shape of Design | Y-Type, T-Type, Rectangular Box |
| Duty | Modulating Diverting / Emergency Rapid Bypass (< 30 sec) |
| Operation | Lever, Gearbox, Heavy-Duty Pneumatic & Electrical Actuators |
| Application | CCPP Turbine Exhaust, HRSG Bypass, Waste Heat Recovery, Steel Mills, Cement & Petrochemicals |
Complementary Damper Solutions
COFFEEPOT DAMPER
The Coffee Pot Damper is a strong and reliable safety damper used in HAG and attached on hot-air ducting systems. It is designed to handle high temperature and pressure conditions. The damper can be operated by a pneumatic cylinder or electric actuator, while the counterweight arrangement helps in quick opening during emergency situations. Its simple, robust design makes it suitable for safe industrial operation.
MULTILOUVER DAMPER
The Multilouver Dampers are used for airflow regulation and isolation in ventilation, fans and industrial air-handling systems. The damper has multiple adjustable louvers mounted in a strong fabricated frame, which helps in smooth and uniform air control with low pressure drop. Louvers are connected through an external linkage for easy and synchronized operation. The damper can be provided with manual or motorized operation and customized in size, material and arrangement as per application requirements.
GUILLOTINE DAMPER
The Guillotine Damper is a heavy-duty damper designed for reliable ON-OFF isolation of air, gas and process ducting systems. It is available in Round and can be manufactured as per required duct/flange dimensions. The damper is suitable for high-temperature and industrial applications where low pressure drop, easy inspection and maintenance are required. When fully open, the passage remains clear, resulting in minimum load loss.
Custom Built for Your Exact Flange & Duct Dimensions
Send us your project drawings or operating temperature and pressure profiles. Our engineering team prepares full technical proposals and dimensional GA drawings within 24 hours.
