MULTILOUVER DAMPER
Synchronized Multiple Vane Modulating Damper
The Multilouver Dampers are used for airflow regulation and isolation in ventilation, fans and industrial air-handling systems. The damper has multiple adjustable louvers mounted in a strong fabricated frame, which helps in smooth and uniform air control with low pressure drop. Louvers are connected through an external linkage for easy and synchronized operation. The damper can be provided with manual or motorized operation and customized in size, material and arrangement as per application requirements.
Real Fabrication & Field Units
Multilouver Vane Array 3D Render

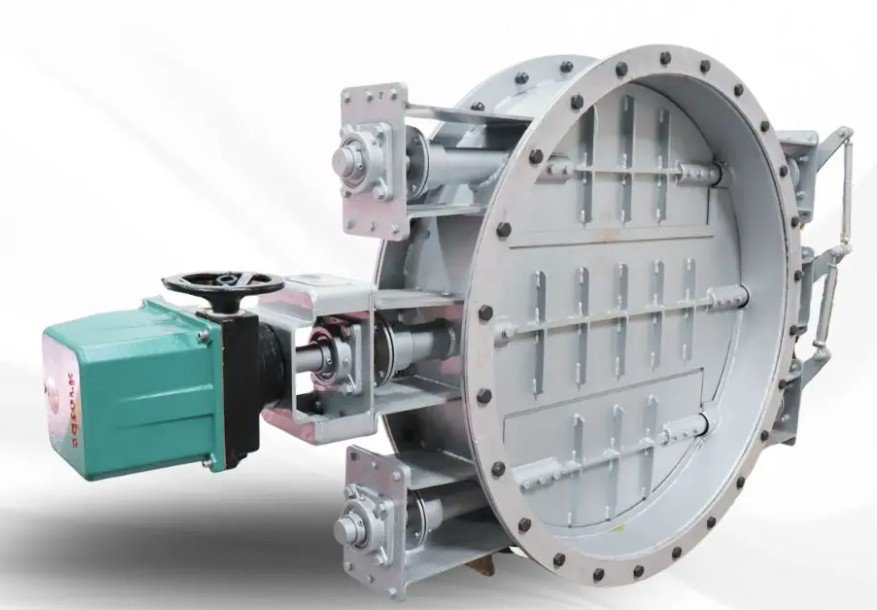

Multi Louver Damper Assembly Unit

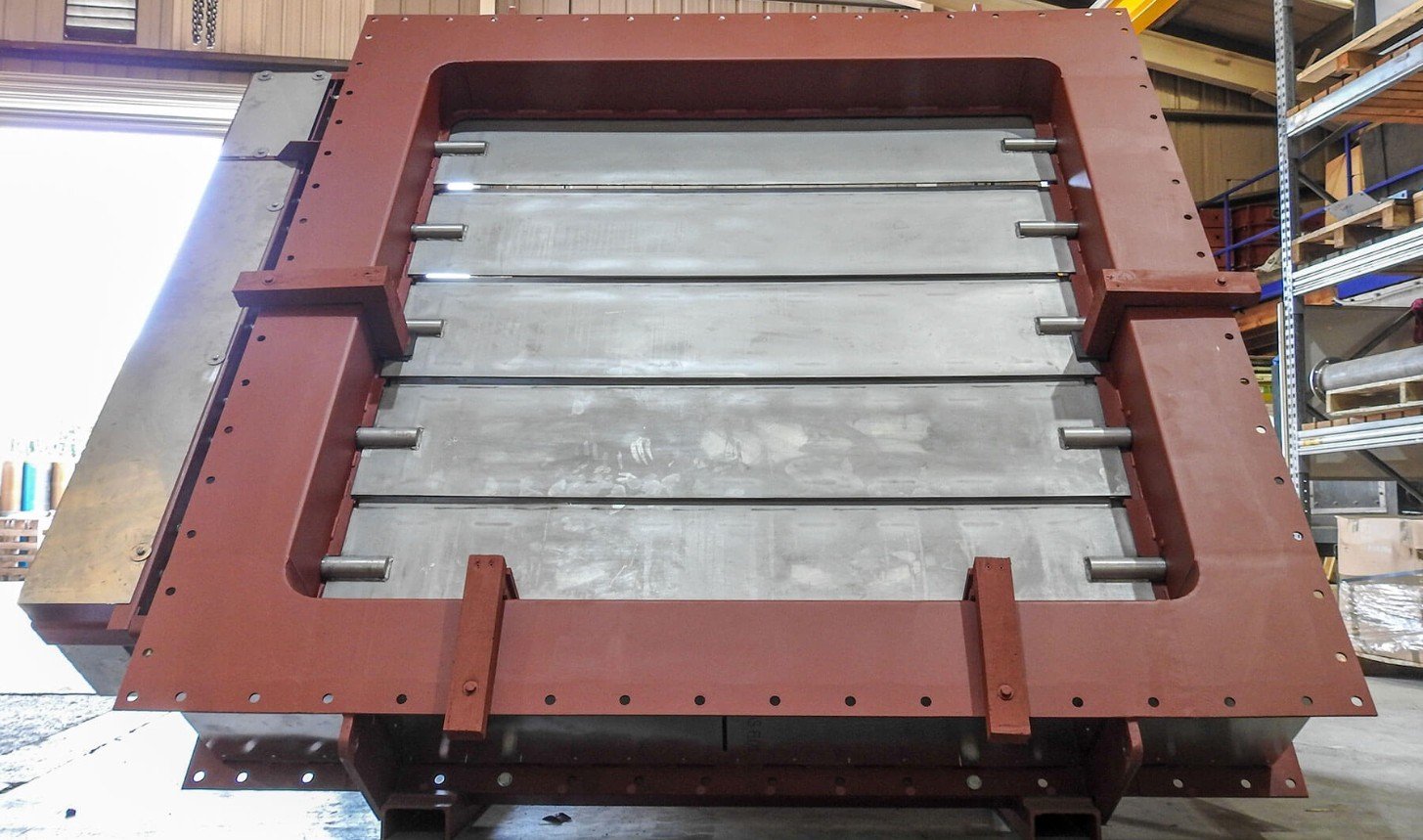

Heavy Industrial Linkage Damper

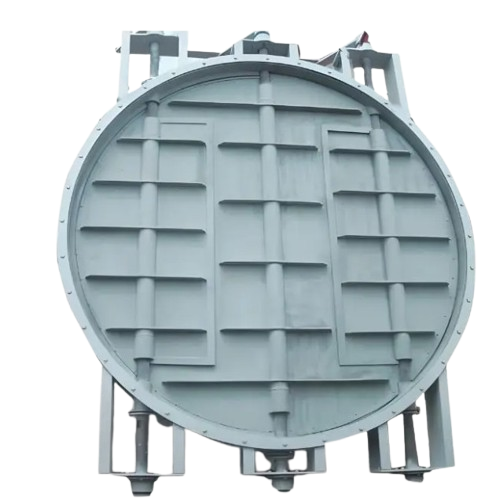

Dual Linkage Sync Configuration
Key Engineering Advantages
Synchronized Linkage
External heavy-duty linkage ensures simultaneous and smooth blade modulation with zero backlash across all vanes.
Low Pressure Drop Design
Aerodynamically optimized airfoil blades minimize static pressure loss and improve overall system HVAC fan efficiency.
Versatile Form Factors
Available in Round, Square, and Rectangular cross-sections ranging from 8 inches to 144 inches in diameter.
Modulating Control
Engineered for precise proportional airflow regulation in industrial ventilation and process exhaust systems.
Technical Specifications
| Engineering Parameter | Design Specification |
|---|---|
| MOC | M.S. or S.S |
| Type | Multilouver / Vane Type |
| Size Range (Dia.) | 8” to 144” Ø / As per Requirements |
| Efficiency | 85% to 92% (depending on blade arrangement and orientation) |
| Operating Temperature | Up to 600°C |
| Operating Air Pressure | Up to 1000 mmWC |
| Shape of Design | Round / Square / Rectangular |
| Duty | ON-OFF / Regulating |
| Operation | Manual / Motorized |
| Louver Material | Weldable alloy steel / Carbon steel, as specified |
| Louver Arrangement | Multiple adjustable vanes |
| Linkage | External linkage mechanism |
| Flow Control | Smooth and uniform modulating control |
| Design basis | Low pressure drop design |
| Customization | Material, dimensions, actuator and operating arrangement can be customized as per project requirements |
| Applications | Fan inlet/outlet, HVAC, ventilation and industrial air-handling systems |
Complementary Damper Solutions
COFFEEPOT DAMPER
The Coffee Pot Damper is a strong and reliable safety damper used in HAG and attached on hot-air ducting systems. It is designed to handle high temperature and pressure conditions. The damper can be operated by a pneumatic cylinder or electric actuator, while the counterweight arrangement helps in quick opening during emergency situations. Its simple, robust design makes it suitable for safe industrial operation.
GUILLOTINE DAMPER
The Guillotine Damper is a heavy-duty damper designed for reliable ON-OFF isolation of air, gas and process ducting systems. It is available in Round and can be manufactured as per required duct/flange dimensions. The damper is suitable for high-temperature and industrial applications where low pressure drop, easy inspection and maintenance are required. When fully open, the passage remains clear, resulting in minimum load loss.
LOUVER (FLAP) TYPE DAMPER
The Louver (Flap) Damper is a heavy‑duty industrial flow control device designed for high‑temperature and harsh environments. Its blades can be arranged in parallel or opposed positions, oriented vertically or horizontally, and customized in size to match duct requirements. Built from high‑strength alloys, it offers tight shut‑off, high efficiency (85–92%), low leakage (<2%), and reliable operation with manual, pneumatic, or electric actuators.
Custom Built for Your Exact Flange & Duct Dimensions
Send us your project drawings or operating temperature and pressure profiles. Our engineering team prepares full technical proposals and dimensional GA drawings within 24 hours.
